Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co., LTD.
|
Jigger
| Price: | 1000.0~20000.0 USD |
| Payment Terms: | T/T,L/C |
| Place of Origin: | Henan, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail

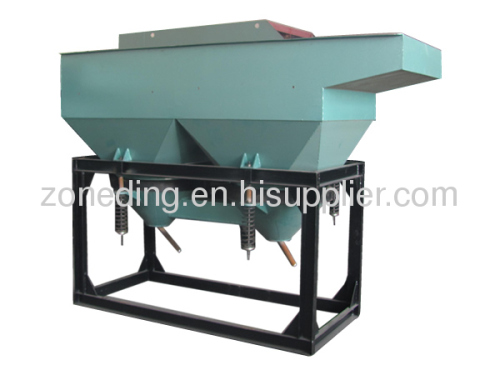

Jigger machine
1)High capacity jigger machine
2)Small standing area jigger
3)High productivity jigger
4)Easy to operate
1. Features of jigger machine
1)High capacity;
2)Small standing area;
3)High productivity;
4)Easy to operate.
2)Small standing area;
3)High productivity;
4)Easy to operate.
2. Jigger, steel jigger, mining equipment, beneficiation equipment, Jiggers, jigger dyeing machine, stainless steel jigger, steel jigger, s/s bar jigger, mineral jigger
3. Application of jigger machine:
New! Hot sell jigger;It is applicable to separate the minerals of large density contrast like wolfram ore, tannery, iron ore, manganese minerals, and chromium minerals, and the non-ferrous metallic substance and black metallic substance consisting of gold and rare metal.
4. We have various of jigger, such as 100×150 100×150Dissepim-ental , 300×450
300×450Dissepimental jigger of double chambers , 1000×1000 1000×1000Below movable taper jigger , 370×360
370×360Below movable taper jigger , Side movable dissepimental echelon jigger , 670×920
etc. In order to give you a responsible quotation, you can inform us the following information:
1)What's the material you are going to deal with?
2)What's the granularity of the material?
3)What's the granularity of the final products are you going to achive?
4)What's the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
5. Main technical parameter of jigger machine:
Name | Chamber number | Chamber area(m3) | Size of feeding port (mm) | Capacity (T/H) | Stroke (mm) | Motor | Weight (kg) | |
Model | Power (kw) | |||||||
100×150 100×150Dissepim-ental | 1 | 0. 015 | ≤3 | 0. 018-0. 6 | - | Y80L-4 | 0. 55 | 130 |
300×450 300×450Dissepimental jigger of double chambers | 2 | 0. 27 | ≤12 | 3-6 | 0-26 | Y90S-4 | 1. 1 | 745 |
1000×1000 1000×1000Below movable taper jigger | 3 | 2 | 1-5 | 10-25 | 0-26 | Y100L-6 | 1. 5 | 1700 |
370×360 370×360Below movable taper jigger | 2 | 0. 274 | ≤6 | 6 | 5-25 | Y90SL2-4 | 1. 1 | 240 |
Side movable dissepimental echelon jigger | 3 | 2. 7 | ≤3 | 12. 5-37. 5 | 13-21 | Y90SL3-4 | 1. 1 | 2000 |
670×920 670×920 jigger | 2 | 1. 44 | 4-8 | 7-10 | 18-24 | - | - | - |
We (Zhongding Heavy Duty Machine Manufacturing Co.,Ltd)are pleased to introduce you ourselves as one of the leading and well established/Manufacturing and Supplying of High Quality Products as below main items:
Stone production line:
Including:
Jaw crusher
Impact crusher
Cone crusher
Hammer crusher
Vibrating screen etc
Sand making production line:
Including:
Jaw crusher
Sand making machine(VSI crusher)
Ball mill
Cone crusher
Hammer crusher
Sand washing machine
Vibrating screen etc
We have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
